Stabler is equipped with the function of electric lifting pitchforks, moved by the operator manually. Allows you to lift palletized loads up to 1 ton, to a height of 1.6 m. Double coating paint provides long-term protection against scratches and rust. ``` Технические параметры ``` 1. Load capacity, kg 1000 2. Overall dimensions, m 1.5x0.92x2.1 3. Weight, 180 kg 4. Maximum lifting height, m 1.6 5. Electric lift 6. Remote control 7. Manual movement

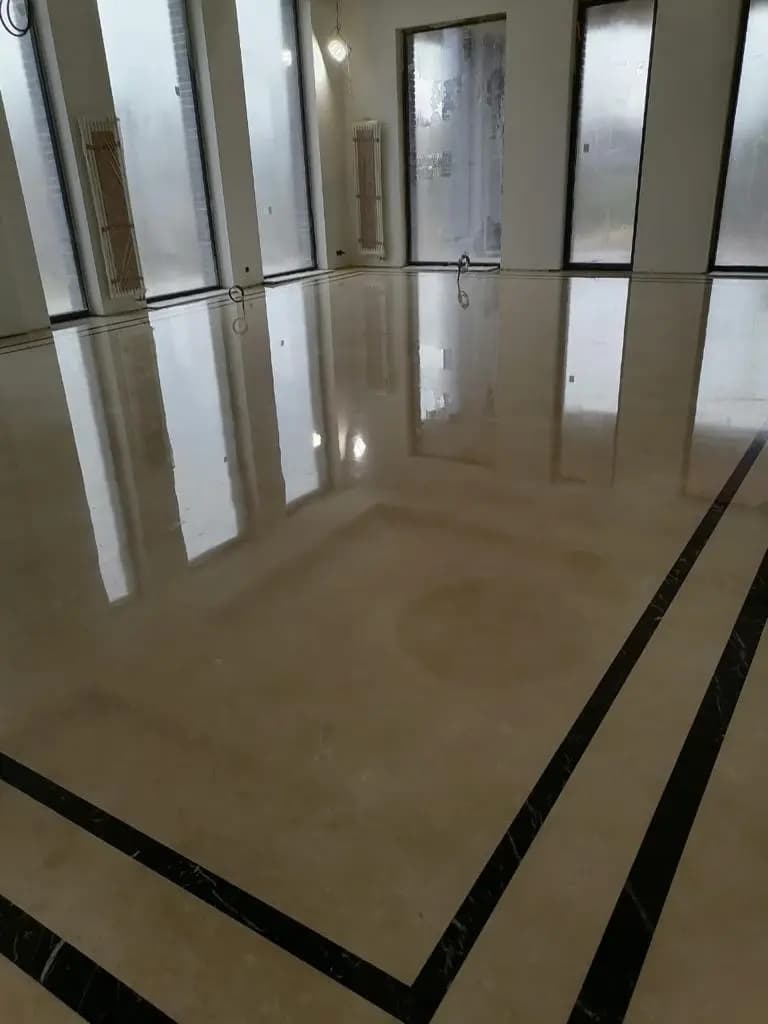

Grinding polishing crystallization repair natural stone
Vacuum lift (suction hoist) VAM 14PN/350 GRES is designed for lifting, moving and installing large plates. It works by compressed air with an aluminum ejector and a noise suppression device. The rubberized plate seal protects the material from scratches. Vacuum force reliably keeps the plate from falling during operation. The pneumocylinder allows you to automatically tilt the plate from 0 ° to 90 °. The recommended air pressure in the compressor is 7-8 atm. Maximum load capacity of 350 kg vertically/horizontally Working pressure to create a vacuum of 3.5 bar Pressure for turning 6 bar Air consumption 95 l/min 2 internal adjustable handles Ability to move plates along the lift structure PRIME TOP TOP calipers Each plate is equipped with a 3-way valve for opening / closing the plates separately. Stainless steel measuring device with arrow in glycerin and a color scale to monitor the vacuum level during work with the material Please contact me. sales@mokeramastone.ru
The ELEK TOP 4/1500 vacuum lift is designed to lift, move and install larger plates. It works on the electric pump in the kit. The rubberized plate seal protects the material from scratches. Vacuum force reliably keeps the plate from falling during operation. The recommended air pressure in the compressor is 7-8 atm. Maximum load capacity of 1500 kg vertically and horizontally The pipe is 1500 mm long 4 stainless steel plates 600x300 mm in size Electric turn 0-90° Attachment and detachment of plates using a valve of anodirovanny aluminum Stainless steel measuring device with arrow in glycerin and a color scale to monitor the vacuum level during work with the material Autonomous light and sound warning system with a solar panel and a charger complete (provides a light and sound signal if the vacuum is not enough to lift) Please contact me. sales@mokeramastone.ru

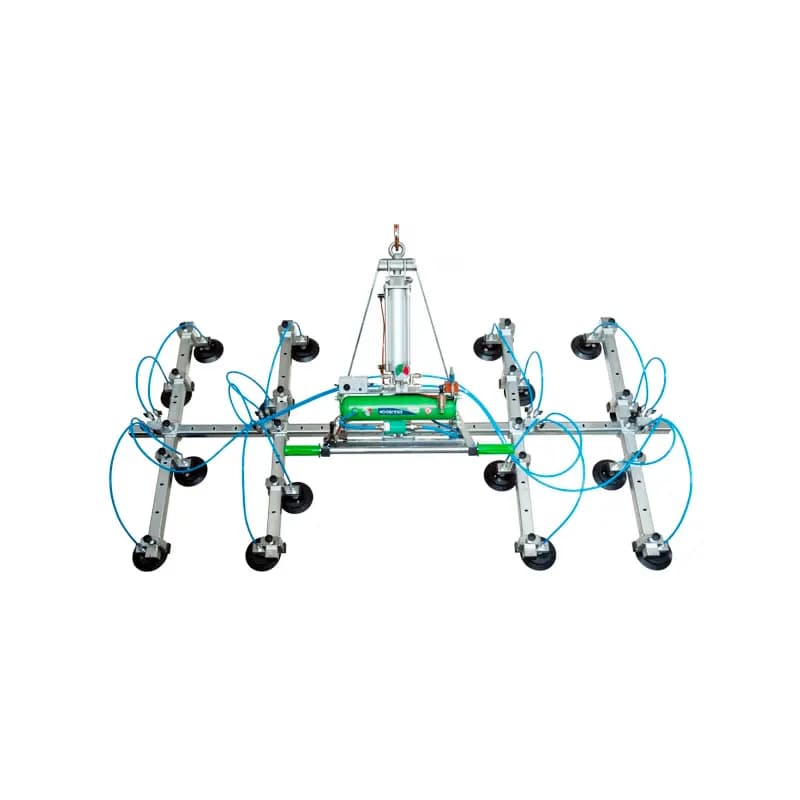

The EXE 16PN GRES 360 vacuum lift is designed to lift, move and install larger plates. It works with compressed air. The rubberized plate seal protects the material from scratches. Vacuum force reliably keeps the plate from falling during operation. The pneumocylinder allows you to automatically tilt the plate from 0 ° to 90 °. The recommended air pressure in the compressor is 7-8 atm. Maximum load capacity of 360 kg vertically and horizontally Working pressure to create a vacuum 6 Bar Pneumatic rotation from 0° to 90° Air consumption 120 l/min 16 PIAB plates 150 mm in diameter Each plate is equipped with a 3-way valve for opening / closing the plates separately. The plates move along the slats. Autonomous light and sound warning system with solar panel and charger complete (provides a light and audible signal if the vacuum is not enough to lift) Please contact me. sales@mokeramastone.ru
The BAS 1/300 vacuum lift is designed to lift, move and install larger plates. It works with compressed air. The rubberized plate seal protects the material from scratches. Vacuum force reliably keeps the plate from falling during operation. The recommended air pressure in the compressor is 7-8 atm. Maximum load capacity of 300 kg vertically/horizontally Working pressure to create a vacuum 6 Bar Manual rotation from 0° to 90° Air consumption 120 l/min One plate size 600x300mm Measuring device made of steel with arrow and color scale for monitoring the vacuum level during work with the material Autonomous light and sound warning system with solar panel and charger complete (provides a light and audible signal if the vacuum is not enough to lift) Please contact me. sales@mokeramastone.ru
The EXE 3PN/625 vacuum lift is designed to lift, move and install larger plates. It works with compressed air. The rubberized plate seal protects the material from scratches. Vacuum force reliably keeps the plate from falling during operation. The pneumocylinder allows you to automatically tilt the plate from 0 ° to 90 °. The recommended air pressure in the compressor is 7-8 atm. Maximum load capacity of 625 kg vertically / horizontally Working pressure to create a vacuum 6 Bar Pneumatic rotation from 0° to 90° Working pressure to create a vacuum 6 Bar Air consumption 120 l/min The pipe is 1500 mm long Three stainless steel plates: 2 plates measuring 450 mm x 300 mm; 1 plate 450 mm x 200 mm Measuring device with a metal case and a color scale for monitoring the vacuum level during work with the material Autonomous light and sound warning system on the panel with solar panels and a charger complete (provides a light and audible signal if the vacuum is not enough to lift) Please contact me. sales@mokeramastone.ru
Vacuum lift (suction hoist) TOP VAM 3PN/625 is designed for lifting, moving and installing large plates. It works by compressed air with an aluminum ejector and a noise suppression device. The rubberized plate seal protects the material from scratches. Vacuum force reliably keeps the plate from falling during operation. The pneumocylinder allows you to automatically tilt the plate from 0 ° to 90 °. The recommended air pressure in the compressor is 7-8 atm. Maximum load capacity - up to 625 kg Working pressure to create a vacuum of 3.5 bar Pneumatic rotation from 0° to 90° Turning pressure - 6 Bar Air consumption - 95 l/min Tube - 1500 mm Two plates of stainless steel size 450x300 mm One central plate of stainless steel size 450x200 mm with removable fastening Autonomous light and sound warning system with solar panel and charger complete (provides a light and audible signal if the vacuum is not enough to lift) Please contact me. sales@mokeramastone.ru
